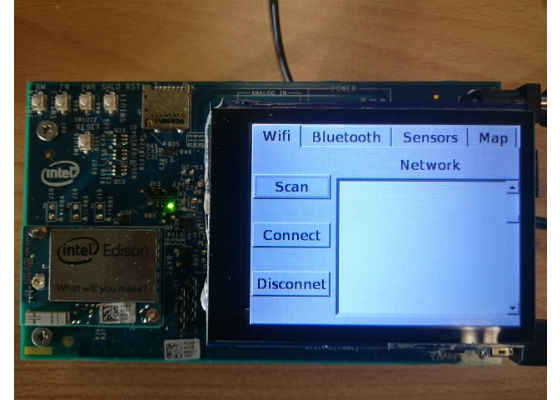

INTEL EDISON - ADDING KERNEL MODULES TO YOCTO - EXAMPLE "BATMAN"

Published Date
07 - Aug - 2015
| Last Updated
07 - Aug - 2015

INTEL EDISON - ADDING KERNEL MODULES TO YOCTO - EXAMPLE "BATMAN"

Recently I was asked how to add batman-adv to Yocto. I put together my answer email and it turned out slightly lengthy - looked like it should go into a blog ;-)

Option 1 - kindly ask others to do the work

Check availability in existing repos like http://repo.opkg.net/edison/. In our concrete example we can find the prerequesite libnl in http://repo.opkg.net/edison/repo/core2-32/ but no b.a.t.m.a.n* [by now it has been added to the repo - still keeping this blog]. Hence we could kindly ask e.g. AlexT on  https://communities.intel.com/thread/55692?start=0&tstart=0 whether he could add the packages "kernel-module-batman-adv" as well as "batctl" to http://repo.opkg.net/edison/. If you are lucky he might do but it's voluntary work on his side.
The packages can be installed via "opkg install <package name>"

Option 2 - compile on target

Slightly more difficult - and requires sufficient free space on Intel(R) Edison rootfs. Install kernel sources on the target and compile modules on the target

Option 3 - build in Yocto build environment

requirements:

  • Linux x64 host system (e.g. Ubuntu* 12.04 [have heard about issues running Yocto* on 14.04 - may be resolved by now], Fedora* 20, ...)
  • min 50 GB free disk space (at least if you want to compile the whole Yocto image)

Yocto setup

  • download "Yocto complete image" from http://www.intel.com/support/edison/sb/CS-035180.htm
  • tar xvf edison-src*.tgz
  • cd edison-src
  • device-software/setup.sh
  • source poky/oe-init-build-env

build kernel-modules-batman-adv

  • bitbake -c menuconfig virtual/kernel; this will open a new window running Linux kernel config for Edison
  • configure batman: within the menuconfig session configure the b.a.t.m.a.n* options you want to see within the Networking Support > Networking Options > BATMAN category
  • cp build/tmp/work/edison-poky-linux/linux-yocto/<your current kernel>/linux-edison-standard-build/.config device-software/meta-edison/recipes-kernel/linux/files/defconfig
  • bitbake -c compile_kernelmodules virtual/kernel
  • in case you require the complete modules tarball: bitbake -c deploy virtual/kernel – you'd find the tarball under build/tmp/deploy/images/edison geschrieben

otherwise: opkg install build/tmp/deploy/ipk/edison/kernel-module-batman-adv_<version>.ipk on your target
The configs I changed:
1 < # CONFIG_BATMAN_ADV is not set

2 ---

3 > CONFIG_BATMAN_ADV=m

4 > CONFIG_BATMAN_ADV_BLA=y

5 > CONFIG_BATMAN_ADV_DAT=y

6 > CONFIG_BATMAN_ADV_NC=y

7 > # CONFIG_BATMAN_ADV_DEBUG is not set

batctl

In order to make use of batman you should also install batctl. On the web you can find bitbake recipes. I used and adopted https://github.com/openembedded/openembedded/blob/master/recipes/batctl/batctl.inc as per below:

01 mkdir -p device-software/meta-edison-distro/recipes-support/batman/

02


03 cat > device-software/meta-edison-distro/recipes-support/batman/batctl_2014.4.0.bb <<EOF

04


05 DESCRIPTION = "Control application for B.A.T.M.A.N. routing protocol kernel module for multi-hop ad-hoc mesh networks."

06 HOMEPAGE = "http://www.open-mesh.net/"

07 SECTION = "console/network"

08 PRIORITY = "optional"

09


10 LICENSE = "GPLv2+"

11 LIC_FILES_CHKSUM = "file://../license-destdir/${PN}/generic_GPLv2;md5=801f80980d171dd6425610833a22dbe6"

12


13 RDEPENDS_${PN} = "kernel-module-batman-adv"

14 DEPENDS = "libnl"

15


16


17 SRC_URI = "http://downloads.open-mesh.net/batman/stable/sources/batctl/batctl-${PV}.tar.gz\

18 file://patch.patch"

19 SRC_URI[md5sum] = "f3a14565699313258ee6ba3de783eb0a"

20 SRC_URI[sha256sum] = "77509ed70232ebc0b73e2fa9471ae13b12d6547d167dda0a82f7a7fad7252c36"

21


22 EXTRA_OEMAKE = 'STAGING_INC="${STAGING_INC}"'

23


24 do_compile() {

25  oe_runmake

26 }

27


28 do_install() {

29 install -d ${D}${bindir}

30 install -m 0755 batctl ${D}${bindir}

31 }

32 EOF

As libnl has changed its include installation path I had to patch the Makefile of batctl. The patch as per below:

01 mkdir -p device-software/meta-edison-distro/recipes-support/batman/files

02 cat > device-software/meta-edison-distro/recipes-support/batman/files/patch.patch <<EOF

03


04 --- a/Makefile  2015-02-27 09:10:45.768409932 +0100

05 +++ b/Makefile  2015-02-27 09:11:32.710554513 +0100

06 @@ -29,7 +29,7 @@

07 MANPAGE = man/batctl.8

08


09  # batctl flags and options

10 -CFLAGS += -Wall -W -std=gnu99 -fno-strict-aliasing -MD -MP

11 +CFLAGS += -Wall -W -std=gnu99 -fno-strict-aliasing -MD -MP –I${STAGING_INC}/libnl3

12 CPPFLAGS += -D_GNU_SOURCE

13 LDLIBS += -lm

14 EOF
After that one can bitbake batctl with:
1 bitbake batctl

After completion you'll find the package in build/tmp/deploy/ipk/core2-32/batctl_2014.4.0-r0_core2-32.ipk. It can be directly installed via "opkg install" on Intel(R) Edison running Yocto* Linux

Test on Intel(R) Edison after installation

1 root@edison:~/ # modprobe batman-adv
If you want to have the module auto-loaded you'd probably want to enter it in /etc/modules-load.d/

01 root@edison:~/ # modinfo batman-adv

02 filename:       /lib/modules/3.10.17-poky-edison+/kernel/net/batman-adv/batman-adv.ko

03 version:        2013.2.0

04 description:    B.A.T.M.A.N. advanced

05 author:         Marek Lindner <lindner_marek@yahoo.de>, Simon Wunderlich <siwu@hrz.tu-chemnitz.de>

06 license:        GPL

07 srcversion:     66711903985B5CAAE0DAF30

08 depends:

09 intree:         Y

10 vermagic:       3.10.17-poky-edison+ SMP preempt mod_unload ATOM

Using a USB eth dongle:

01 root@edison:~/ # batctl if add enp0s17u1

02 root@edison:~/ # batctl if

03 enp0s17u1: active

04 root@edison:~/ # batctl s

05 tx: 6

06 tx_bytes: 468

07 tx_dropped: 0

08  rx: 1

09 rx_bytes: 42

10 forward: 0


11  forward_bytes: 0

12   mgmt_tx: 60

13 mgmt_tx_bytes: 2428

14  mgmt_rx: 0

15  mgmt_rx_bytes: 0

16  tt_request_tx: 0

17 tt_request_rx: 0

18  tt_response_tx: 0

19  tt_response_rx: 0

20  tt_roam_adv_tx: 0

21  tt_roam_adv_rx: 0

22 dat_get_tx: 0

23 dat_get_rx: 0

24 dat_put_tx: 0

25  dat_put_rx: 0

26 dat_cached_reply_tx: 0

27  nc_code: 0

28 nc_code_bytes: 0

29 nc_recode: 0

30 nc_recode_bytes: 0

31 nc_buffer: 0

32 nc_decode: 0

33 nc_decode_bytes: 0

34  nc_decode_failed: 0

35  nc_sniffed: 0

1 # ifconfig bat0

2 bat0      Link encap:Ethernet  HWaddr 52:78:97:51:ba:9d

3 inet6 addr: fe80::5078:97ff:fe51:ba9d/64 Scope:Link


4  UP BROADCAST RUNNING MULTICAST DYNAMIC  MTU:1500  Metric:1


5  RX packets:1 errors:0 dropped:0 overruns:0 frame:0


6   TX packets:6 errors:0 dropped:0 overruns:0 carrier:0


7  collisions:0 txqueuelen:0


8  RX bytes:42 (42.0 B)  TX bytes:468 (468.0 B)
